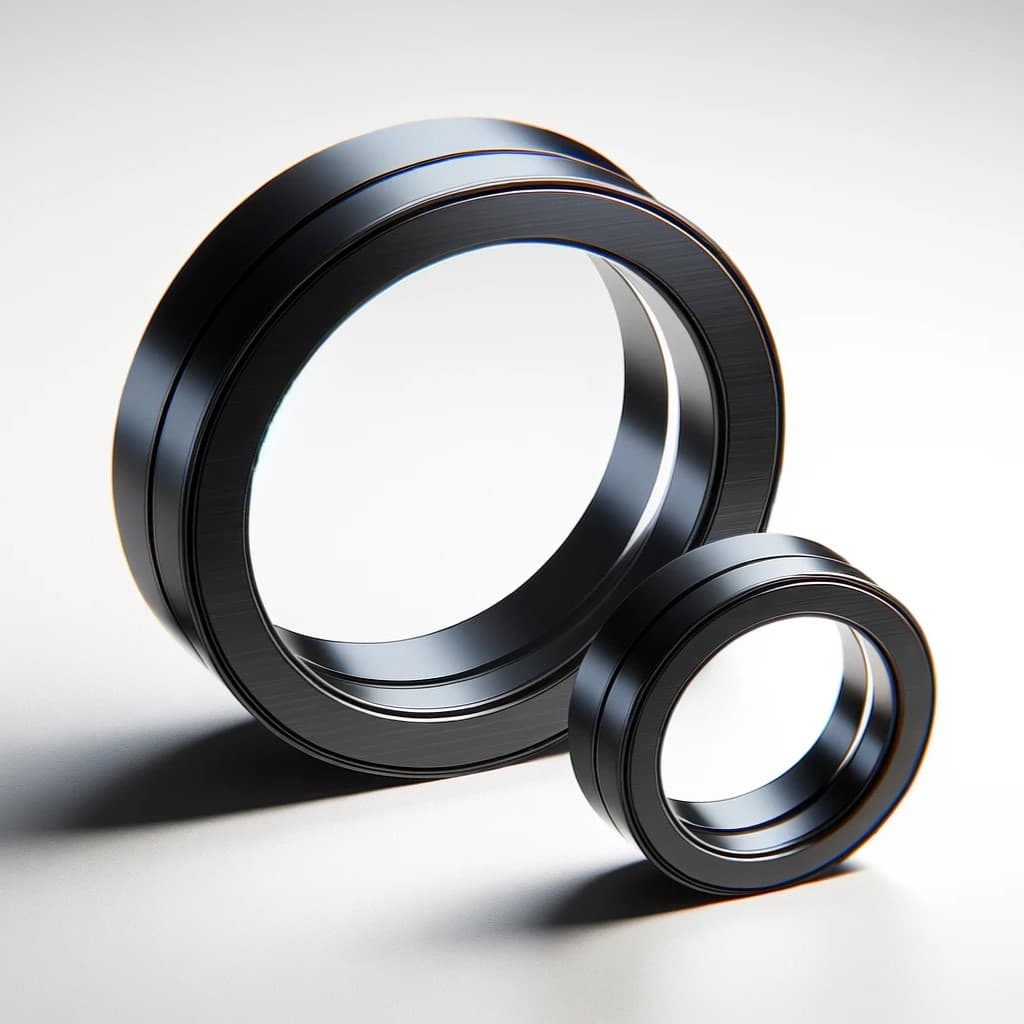

High Energy (High power) Waveplates (Half-wave (HWP) & Quarter-wave (QWP) plates)

High Energy (High Power) Waveplates. Half and quarter waveplates rotate or convert polarization of high power laser beams. Various variants and custom deigns available.

Estimated Shipping Date: December 3, 2024 - December 17, 2024

* - Shopping cart pricing is based on the most recent pricing and it is NOT ORDERING, but requesting an official quotation which should typically reach You within 1-2 business days.

Variants
Applications
Types
Construction

Predefined variants of product to view, select and fill parameters or add product directly to cart.
Face Size	Mount	Mount Size	Construction	Retardation	Wavelength	LIDT (10 ns, 10 Hz)	Surface Quality	Wavefront Distortion
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/4 (quarter-wave)	266 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/2 (half-wave)	266 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/4 (quarter-wave)	343 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/2 (half-wave)	343 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/4 (quarter-wave)	355 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/2 (half-wave)	355 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/4 (quarter-wave)	400 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/2 (half-wave)	400 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/4 (quarter-wave)	515 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/2 (half-wave)	515 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/4 (quarter-wave)	532 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/2 (half-wave)	532 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/4 (quarter-wave)	633 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/2 (half-wave)	633 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/4 (quarter-wave)	780 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/2 (half-wave)	780 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/4 (quarter-wave)	800 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/2 (half-wave)	800 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/4 (quarter-wave)	980 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/2 (half-wave)	980 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/4 (quarter-wave)	1030 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/2 (half-wave)	1030 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/4 (quarter-wave)	1064 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/2 (half-wave)	1064 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/4 (quarter-wave)	1310 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/2 (half-wave)	1310 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/4 (quarter-wave)	1550 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10
Ø20 mm	Metal ring	Ø25.4 x 6 mm	Air-spaced	λ/2 (half-wave)	1550 nm	>20 J/cm² @ 1064 nm	10-5 S-D	λ/10

High Energy Waveplates for various UV-VIS-NIR-IR applications: from laser engraving to medical procedures

Based on working wavelength Alien Photonics high energy (high power) waveplates can be grouped in ultraviolet, visible light and near infrared and multi-wavelength (cross-region) groups.

Ultraviolet (UV) High Energy (High Power) Waveplates

Wavelength	Typical application
266 nm	Micromachining, photolithography
343 nm	Laser marking, biomedical imaging
355 nm	Laser engraving, medical procedures

Visible light (VIS) High Energy (High Power) Waveplates

Wavelength	Typical application
400 nm	Fluorescence excitation, photopolymerization
515 nm	Material processing, green light displays
532 nm	Laser marking, surgery, holography
633 nm	Holography, interferometry, spectroscopy

Near infrared (NIR) High Energy (High Power) Waveplates

Wavelength	Typical application
780 nm	Atomic cooling and trapping, spectroscopy
800 nm	Femtosecond laser applications, Ti:sapphire lasers
980 nm	Pump lasers for fiber amplifiers, material processing
1030 nm	Cutting, welding, and marking for industrial applications
1064 nm	Nd:YAG lasers for cutting, welding, medical treatments
1310 nm	Telecommunications, optical coherence tomography (OCT)
1550 nm	Telecommunications, LIDAR, eye-safe laser applications

Cross-region (multi wavelength) High Energy (High Power) Waveplates

Wavelength	Typical application
1064 nm + 532 nm	Multi-functional Nd:YAG laser systems for cutting, marking, and medical
1030 nm + 515 nm	Material processing, precision machining with high power Yb:YAG laser harmonics
800 nm + 400 nm	Ultrafast spectroscopy, two-photon microscopy, and imaging using high energy Ti:Sapphire lasers.

High Energy (High Power) half-wave (HWP) and quarter-wave (QWP) Waveplates

Half-wave plates (HWP) for high energy applications

Half-wave plates (HWP) for high-energy applications work by rotating the polarization of high-power laser beams. Specific construction allows Alien Photonics HWPs to an withstand the intense conditions of high-power laser systems, such as those used in industrial processing, medical treatments, and scientific research, ensuring optimal performance and safety.

Quarter-wave plates (HWP) for high energy applications

Quarter-wave plates (QWP) for high-energy applications convert linearly polarized light into circular polarization or vice versa in high-power laser systems. Alien Photonics QWPs are indispensable in advanced optical setups, including optical communications, laser machining, and experimental physics, where precise polarization manipulation is crucial under high-energy conditions.

High Energy Waveplates for powerful lasers

High laser induced damage threshold waveplates: air-spaced, bonded and single waveplates

The most laser energy resistant construction is air-spaced or just simple single plate design. Optical contact (bonding) construction also offers good threshold values. However, glued(cemented) types have limited LIDT characteristic, due to the glue characteristics.

High LIDT air-spaced waveplates

Air-spaced high power waveplates are constructed by fixing two low (or multiple) order waveplates into a mount, with precisely designed air gap between them. This air gap also acts as thermal insulator between plates and reduces chance of potential thermal gradients. Alien Photonics air-spaced high energy waveplates typically LIDT characteristic is 10-20 J/cm² @ 1064 nm, 10 ns, 10 Hz.

Optically contacted (bonded) waveplates for high power applications

Two low (or multiple) order waveplates bonded together. Optical contact method creates a solid connection between plates without the need for adhesive materials. The absence of adhesives eliminates potential sources of optical absorption and heat generation at the bonding interface, significantly increasing the waveplate's resistance to laser-induced damage. Typical LIDT is 10-20 J/cm² @ 1064 nm, 10 ns, 10 Hz.

Laser damage resistant monolithic single wave plates

Single waveplates have simplest construction – just one plate! Lack of glue and generally thicker (except true zero order waveplates) makes them more resistant to temperature changes and increase laser induced damage threshold. LIDT of these single plates is typically 10-20 J/cm² @ 1064 nm, 10 ns, 10 Hz.
